116-AC Card Door Lock
About This Product

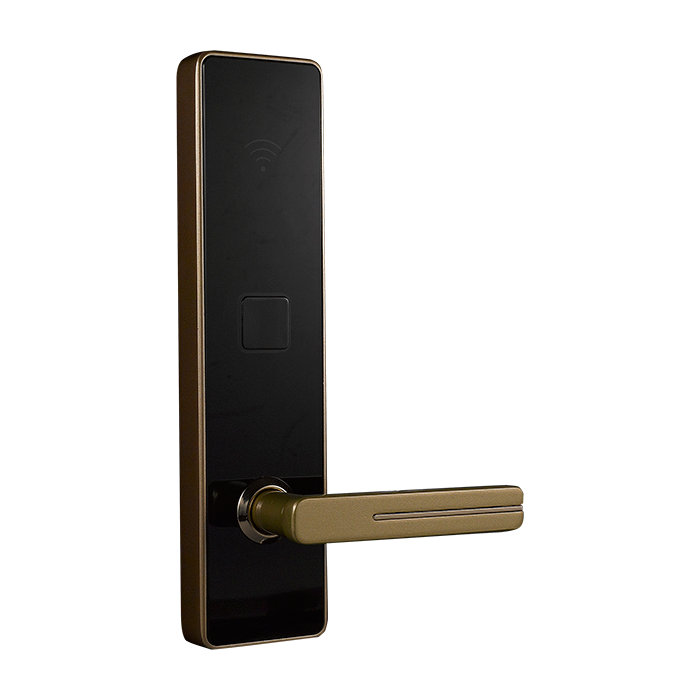

116-AC Card Door Lock
Full-length panel lock combining aluminium alloy with an acrylic surface. Silver, gold and gold-edged black variants create a striking door appearance.
Get A QuoteDetailed Information
Technical Parameters
| Material | Aluminium alloy and acrylic |
| Finish | Silver / Gold / Gold-edged black |
| Power Supply | 4 x AA alkaline batteries |
| Battery Life | 15,000+ openings |
| Static Current | <20 uA |
| Dynamic Current | <150 mA |
| Operating Temperature | -25 / +60 °C |
| Operating Humidity | %15-90 |
| Card Reading Distance | 0-5 cm |
| Read / Write Time | <0,25 s |
| Date Retention | Over 10 years |
| Applicable Chip | Mifare 1 (13,56 MHz) |
Standard Features
- Micro motor guaranteed for 600,000 operations
- Last 992 entries stored in the lock memory
- Mechanical key override for emergencies
- Master, floor and housekeeping card authority levels
- Low battery warning
- Compatible with the Energy Saver card holder and DND panel
